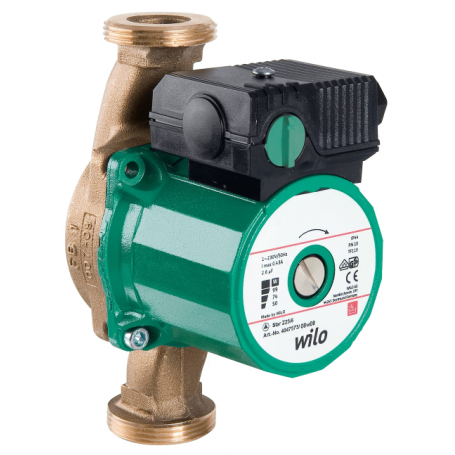

Standard electronic single ACS STAR-Z 20/7-3 wet rotorelectronic circulator with threaded connections, self-protected asynchronous motor for domestic hot water recirculation circuits.
Special features / Product advantages :
- All components in contact with the pumped fluid comply with KTW requirements.
- Self-protected motor.
- Extremely low power consumption: 2 to 4.5 watts thanks to the new asynchronous motor.
Wilo electronic single acs circulator star-z 20/7-3(150mm) rp 3/4"
Standard electronic single ACS STAR-Z 20/7-3 wet rotorelectronic circulator with threaded connections, self-protected asynchronous motor for domestic hot water recirculation circuits.
Special features / Product advantages :
- All components in contact with the pumped fluid comply with KTW requirements.
- Self-protected motor.
- Extremely low power consumption: 2 to 4.5 watts thanks to the new asynchronous motor.
Payment methods
Description:
Standard electronic single ACS STAR-Z 20/7-3 wet rotor circulator with threaded connections, self-protected asynchronous motor for domestic hot water recirculation circuits.
Key reading:
Example: Wilo-Star-Z 20/1
Star > standard pump
Z > recirculation pump
20/ > Nominal connection diameter
1 > Nominal head [m]
-3 > 3 speed stages
Applications:
Drinking water circulation systems in industry and building technology. Domestic hot water recirculation
Technical data:
- Constant speed or for Star-Z...-3 three speed stages selectable
- Temperature of pumped media:
Potable water up to 3.21 mmol/l (18 °dH): max. +65 °C, in short-term operation (2 h) up to +70 °C
- Mains power supply 1~230 V, 50 Hz
- Degree of protection IP44
- Nominal diameter Rp ½, Rp 1
- Max. operating pressure 10 bar
- BRAND
- WILO
