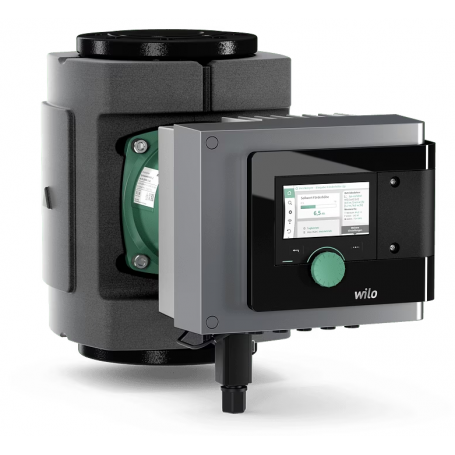

WILO STRATOS MAXO 40/0.5-10 DN40 SINGLE ELECTRONIC CIRCULATOR

Single SMART electronic STRATOS MAXO 40/0.5-10 wet rotorcirculator with flanged or threaded connections, EC permanent magnet motor technology optimized for automatic performance adjustment.

Special features / Product advantages :

Setting of the specific adjustment function for the type of system through menu guided (Setup Guide)
Large 4.2" full-screen LED display for viewing different operating parameters.
Connection through standard Bluetooth interface for integral management of the pumping system from regulation to display of different operating parameters.

Shipping expected within 7 working days

Wilo stratos maxo 40/0.5-10 dn40 single electronic circulator

Single SMART electronic STRATOS MAXO 40/0.5-10 wet rotorcirculator with flanged or threaded connections, EC permanent magnet motor technology optimized for automatic performance adjustment.

Special features / Product advantages :

Setting of the specific adjustment function for the type of system through menu guided (Setup Guide)
Large 4.2" full-screen LED display for viewing different operating parameters.
Connection through standard Bluetooth interface for integral management of the pumping system from regulation to display of different operating parameters.

€2,331.42 (tax incl.)

€3,330.60 -30%

Payment methods

pagamenti

Best E-commerce in Italy for industrial supplies - la Repubblica

migliori ecommerce italia forniture industriali

24 month warranty

Do you need more information? Contact us

Description:

STRATOS MAXO 40/0.5-10 single SMART electronic wet rotor circulator with flanged or threaded connections, EC permanent magnet motor technology optimized for automatic performance adjustment.

Key readout:

Example:

Wilo-Stratos MAXO 30/0.5-12

Stratos > High-efficiency pump (nozzle or flanged pump)

MAXO > electronically regulated

30/ > Nominal connection diameter

0.5-12 > Nominal head range [m]

-R7 > without integrated Stratos MAXO temperature sensor

-P1 > Version free of substances that interfere with paint wetting

Application:

All hot water heating systems, air conditioning systems, closed cooling circuits, industrial circulation systems.

Technical data (referring to the whole range):

Permissible temperature range -10 °C to +110 °C, -10 °C to +90 °C (version "-R7")
Mains power supply 1~230 V, 50/60 Hz
IPX4D degree of protection
Socket or flange connection (depending on type) Rp 1 up to DN 100
Max. operating pressure standard version: 6/10 bar or 6 bar (special version: 10 bar or 16 bar)
Insulation class: F
Electromagnetic noise emission according to: EN 61800-3:2004+A1:2012/residential environment (C1)
Noise immunity according to: EN 61800-3:2004+A1:2012/industrial environment (C2)
Max. flow rate. Q: 74 m³/h
Max head. H: 16 m
