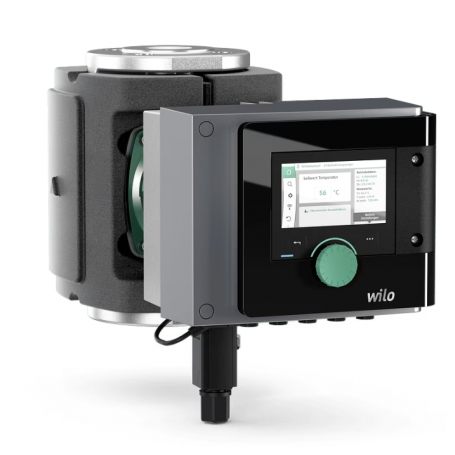

STRATOS MAXO-Z 32/0.5-8 single ACS smart electronic wet rotorcirculator with flanged or threaded connections, EC permanent magnet motor technology for automatic performance control for domestic hot water recirculation circuits.
Special features / Product advantages :
- Maximum water hygiene and energy efficiency thanks to the innovative T-const intelligent control function.
- Assurance of optimal hygiene through thermal disinfection mode.
- Connection through the standard Bluetooth interface for integral management of the pumping system from regulation to visualization of different operating parameters.
Wilo electronic single acs circulator stratos maxo-z 32/0.5-8 dn32 220
STRATOS MAXO-Z 32/0.5-8 single ACS smart electronic wet rotorcirculator with flanged or threaded connections, EC permanent magnet motor technology for automatic performance control for domestic hot water recirculation circuits.
Special features / Product advantages :
- Maximum water hygiene and energy efficiency thanks to the innovative T-const intelligent control function.
- Assurance of optimal hygiene through thermal disinfection mode.
- Connection through the standard Bluetooth interface for integral management of the pumping system from regulation to visualization of different operating parameters.
Payment methods
Description:
STRATOS MAXO-Z 32/0.5-8 single ACS smart electronic wet rotor circulator with flanged or threaded connections, EC permanent magnet motor technology for automatic performance control for domestic hot water recirculation circuits.
Key readout:
Example: Wilo-Stratos MAXO-Z 40/0.5-8
Stratos MAXO > High-efficiency pump (glanded or flanged pump), electronically regulated
Z > Single pump for potable water circulation
40/ > Nominal connection diameter
0.5-8 > Nominal head range [m]
-P1 > Version free of substances that interfere with paint wetting
Applications:
Potable water circulation systems in industry and building technology. Domestic hot water recirculation
Technical data:
- Permissible temperature range:
- Potable water up to 3.57 mmol/l (20 °dH): 0 °C to +80 °C
- Heating water: -10 °C to +110 °C
- Mains power supply 1~230 V, 50/60 Hz
- IPX4D degree of protection
- Pipe union or flange connection (depending on type) Rp 1 to DN 65
- Max. operating pressure standard version: 6/10 bar (special version: 16 bar)
- Insulation class: F
- Electromagnetic noise emission according to: EN 61800-3:2004+A1:2012/residential environment (C1)
- Noise immunity according to: EN 61800-3:2004+A1:2012/industrial environment (C2)
- Max. flow rate. Q: 46 m³/h
- Max head. H: 12 m
- BRAND
- WILO
