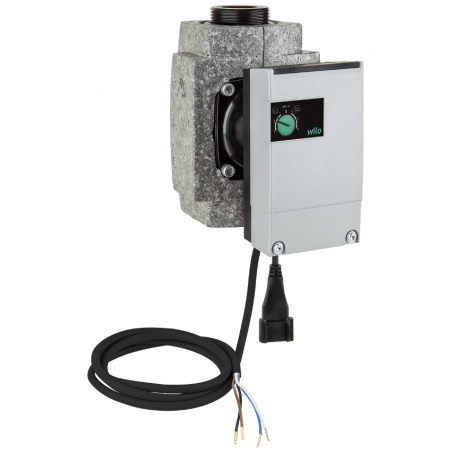

YONOS ECO 30/1-5 BMS single standard electronic wet rotorcirculator with threaded connections, self-protected high-efficiency motor with EC technology for electronic performance control and interface with integrated BMS systems.
Special Features / Product Advantages :
- Potential-free cumulative block signaling contact (SSM) for connection to external control units (e.g., building automation system) and 0-10 V control input
- Control cable (4-wire, 1.5 m) for SSM and 0-10 V connection
- Wilo-Connector
- Thermal insulation as standard
- Pump housing with cataphoresis (KTL) layer to protect against corrosion caused by condensation
Wilo single electronic circulator yonos eco 25/1-5 bms rp 1" 180
YONOS ECO 30/1-5 BMS single standard electronic wet rotorcirculator with threaded connections, self-protected high-efficiency motor with EC technology for electronic performance control and interface with integrated BMS systems.
Special Features / Product Advantages :
- Potential-free cumulative block signaling contact (SSM) for connection to external control units (e.g., building automation system) and 0-10 V control input
- Control cable (4-wire, 1.5 m) for SSM and 0-10 V connection
- Wilo-Connector
- Thermal insulation as standard
- Pump housing with cataphoresis (KTL) layer to protect against corrosion caused by condensation
Payment methods
Description:
YONOS ECO 30/1-5 BMS standard single electronic wet rotor circulator with threaded connections, self-protected high-efficiency motor with EC technology for electronic performance control and interface with integrated BMS systems.
Key readout.
Example: Yonos ECO 25/1-5 BMS
Yonos ECO > High-efficiency standard circulator electronically regulated
25/ > Nominal connection diameter (Rp/DN)
1-5 > Nominal head range (m)
BMS > Integration into remote management systems BMS (Building Management System)
Applications:
Heating, air conditioning and refrigeration systems.
Technical Data:
- Pumped fluid temperature -10 °C to +110 °C (with max. ambient temperature +25 °C)
- Mains power supply 1~230 V, 50/60 Hz
- IP 44 degree of protection
- Port connection Rp 1 and Rp 1¼
- Max. operating pressure 10 bar
