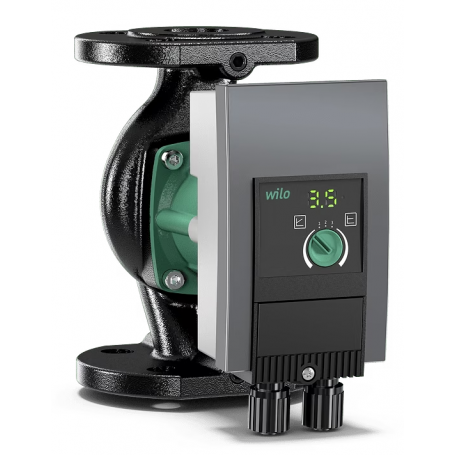

YONOS MAXO 80/0.5-12single standard electronic wet rotorcirculator with threaded or flanged connections, EC permanent magnet motor technology for automatic performance adjustment.
Special Features/Product Advantages :
- LED indicator provides clear indication of set head rating, speed stage and possible errors.
- Easy setting via speed stages when replacing a standard pump that is not electronically regulated
- LED segment display to show head and error codes
Wilo single electronic circulator yonos maxo 80/0.5-12 pn6 dn80 pn6/10 360
YONOS MAXO 80/0.5-12single standard electronic wet rotorcirculator with threaded or flanged connections, EC permanent magnet motor technology for automatic performance adjustment.
Special Features/Product Advantages :
- LED indicator provides clear indication of set head rating, speed stage and possible errors.
- Easy setting via speed stages when replacing a standard pump that is not electronically regulated
- LED segment display to show head and error codes
Payment methods
Description:
YONOS MAXO 80/0.5-12 single standard electronic wet rotor circulator with threaded or flanged connections, EC permanent magnet motor technology for automatic performance adjustment.
Key readout:
Example: Wilo-Yonos MAXO 30/0.5-12
Yonos > High-efficiency pump (screw-in or flanged pump)
MAXO > electronically regulated
30/ > Nominal connection diameter
0.5-12 > Nominal head range [m]
Application:
All heating systems, air conditioning systems, closed refrigeration circuits, industrial circulation systems.
Technical data (referring to the whole range):
- Permissible temperature range -20°C to +110°C
- Mains power supply 1~230 V, 50/60 Hz
- Protection class IP X4D
- Flanged connection from DN 32 up to DN 80
- Max. operating pressure standard version: 6/10 bar or 6 bar (special version: 10 bar)
- BRAND
- WILO
- DN
- 80
