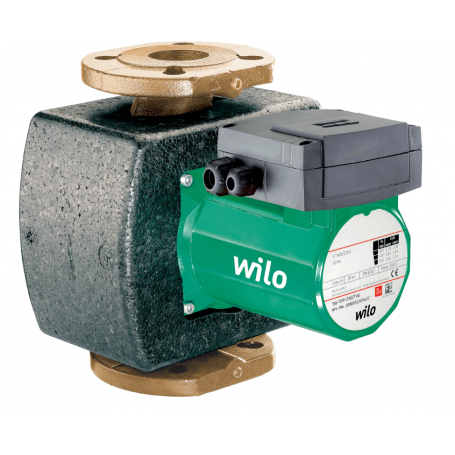

Standard electronic single ACS TOP-Z 40/7 wet rotorelectronic circulator with flanged or threaded connections, with self-protected asynchronous motor for domestic hot water recirculation circuits.
Special features / Product advantages :
- Three manually switchable speeds for performance adjustment.
- Indicator light for indication of correct direction of rotation (3~ version only).
- Cable gland on both sides (only for single-phase pumps and three-phase pumps with P2 ≥ 180 W) with integrated cable strain relief.
Wilo electronic single acs circulator top-z 40/7 em dn40 pn6/10 250
Standard electronic single ACS TOP-Z 40/7 wet rotorelectronic circulator with flanged or threaded connections, with self-protected asynchronous motor for domestic hot water recirculation circuits.
Special features / Product advantages :
- Three manually switchable speeds for performance adjustment.
- Indicator light for indication of correct direction of rotation (3~ version only).
- Cable gland on both sides (only for single-phase pumps and three-phase pumps with P2 ≥ 180 W) with integrated cable strain relief.
Payment methods
Description:
Standard electronic single ACS TOP-Z 40/7 wet rotor electronic circulator with flanged or threaded connections, with self-protected asynchronous motor for domestic hot water recirculation circuits.
Key reading:
Example: Wilo-TOP-Z 40/7
TOP > Standard pump (socketed or flanged pump)
-Z > Single pump for potable water circulation
40/ > Nominal connection diameter
7 > Nominal head range [m] at Q = 0 m3/h
Applications:
Potable water circulation systems in industry and building technology. Domestic hot water recirculation
Technical data:
- Permissible temperature range:
- TOP-Z 20/4 and TOP-Z 25/6 for domestic water up to 3.21 mmol/l (18 °dH): max. +65 °C, briefly (2 h) up to +80 °C
- From TOP-Z 25/10 drinking water up to 3.57 mmol/l (20 °dH): max. +80 °C, for short time (2 h) up to +110 °C
- Mains power supply:
- 1~230 V, 50 Hz (depending on type)
- 3~230 V, 50 Hz (with optional switching plug)
- 3~400 V, 50 Hz
- Degree of protection IP X4D
- Boss or flanged connection (depending on type) Rp ¾ up to DN 80
- Max. operating pressure standard version: 6/10 bar or 6 bar (special version: 10 bar or 16 bar)
- BRAND
- WILO
