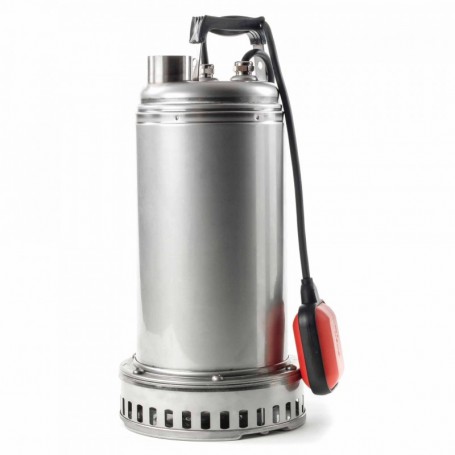

Submersible electric pump dab drenag 1200 m-a v.230 hp1.6

Description

APPLICATIONS:

• Stainless steel submersible centrifugal pumps with semi-open impeller, designed for pumping and draining lightly loaded water with suspended solids with a maximum diameter of 10 mm
• These pumps are suitable for pumping sandy water, groundwater, in no case aggressive water
• Pump body, turbine, motor support, filter, motor cover, handle and wiring chamber cover made of AISI 304 stainless steel
• Stainless steel handle is covered with a protective and insulating rubber layer
• AISI 316 stainless steel motor shaft
• Double mechanical seal made of graphite/aluminum on motor side and silicon carbide/silicon carbide on pump side
• Rotor mounted on self-lubricating bearings selected for their longevity and quiet operation
• Hermetically sealed asynchronous motor , cooled by the pumped liquid
• Capacitor and permanent thermal contact for single-phase version
• Manual adjustment of the float switch

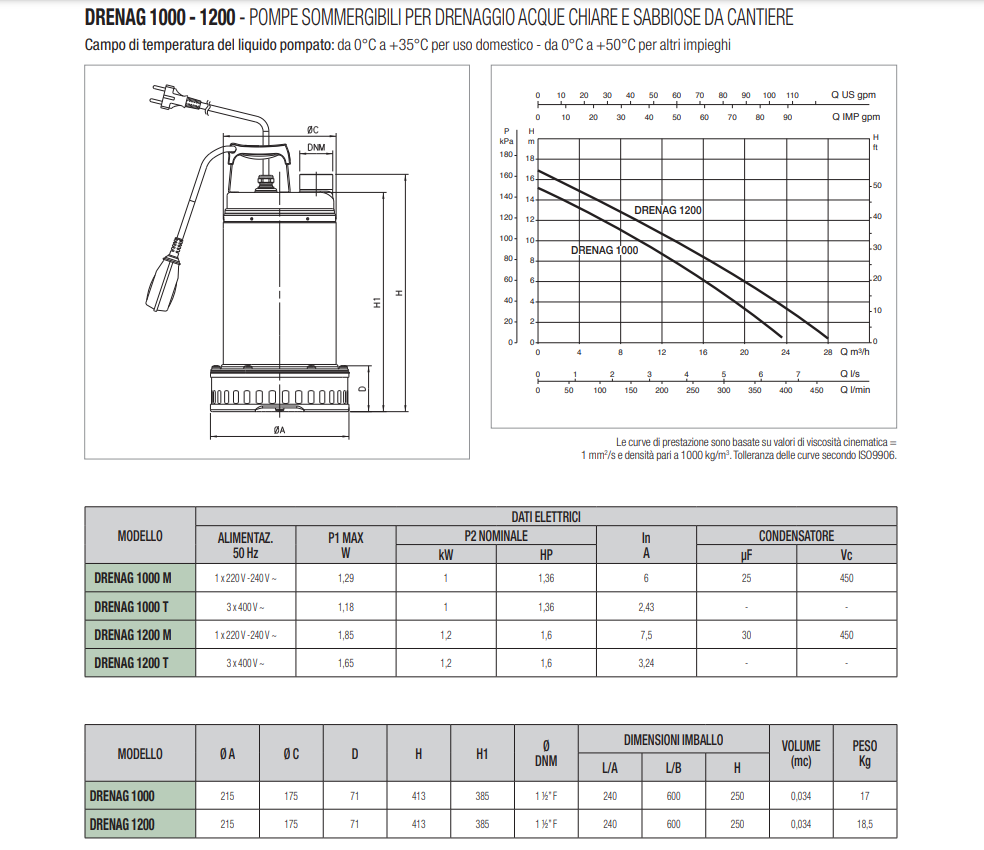

TECHNICAL DATA:

• Operating range: 3 to 28 m3/h with head up to 17 meters.
• Pumped liquid: rainwater, groundwater, sandy site water and white waste water, however nonaggressive.
• Passage particle size: 10 mm
• Liquid temperature range:

- 0°C to +35°C for domestic use (EN 60335-2-41)

- 0°C to +50°C for other uses.

• Maximum ambient temperature for emerged motor pump operation: +40°C

• Maximum immersion depth: 7 meters
• Degree of motor protection: IP 68
• Insulation class: F
• Installation: stationary or portable, vertical or horizontal
