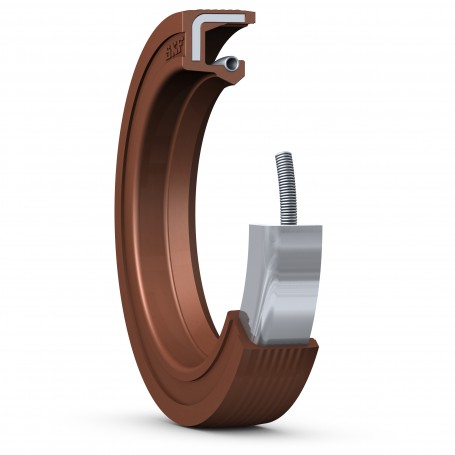

Seal ring skf 65x90x10 hmsa10-rg nbr

Description:

HMSA10 seals provide a rubber outer diameter. They feature a conventional sealing lip made of elastomeric or thermoplastic material. A load spring in the seal and an auxiliary non-sliding lip allow optimization of the sealing function against the shaft even in contaminated environments.

• High pumping coefficient, effective contaminant exclusion function with dust lip, with load spring, ability to compensate for misalignment

Features:

Type of outside diameter: Metal reinforced rubber

Lip material: Nitrile rubber (NBR)

Seal design: HMSA10

Compliance with standard: ISO 6194, DIN 3760

Applications and operating conditions:

• Operating temperature: min.-40 °C
• Operating temperature: max.100 °C
• Allowable operating temperatures, for short periods: max.120 °C
• Shaft surface speed: max.8.9 m/s
• Shaft speed: max.2640 r/min
• Pressure variation: 0.03 N/mm²

Dimensions (see fig. below)

• Shaft diameter (d1) = 65 mm
• Support bore diameter (d) = 90 mm
• Sealing width (b) = 10 mm
