Shipping expected within 7 working days

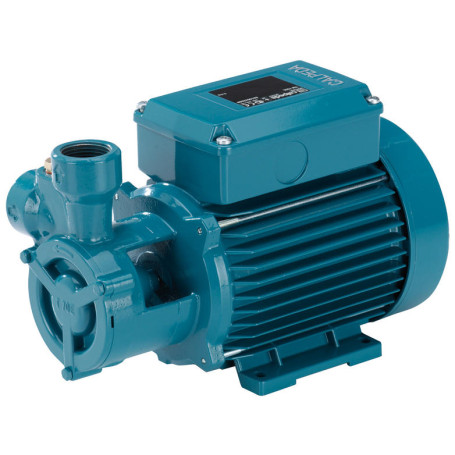

Calpeda electric pump tm 76e 230v
Payment methods
Best E-commerce in Italy for industrial supplies - la Repubblica
24 month warranty
Do you need more information?
Contact us

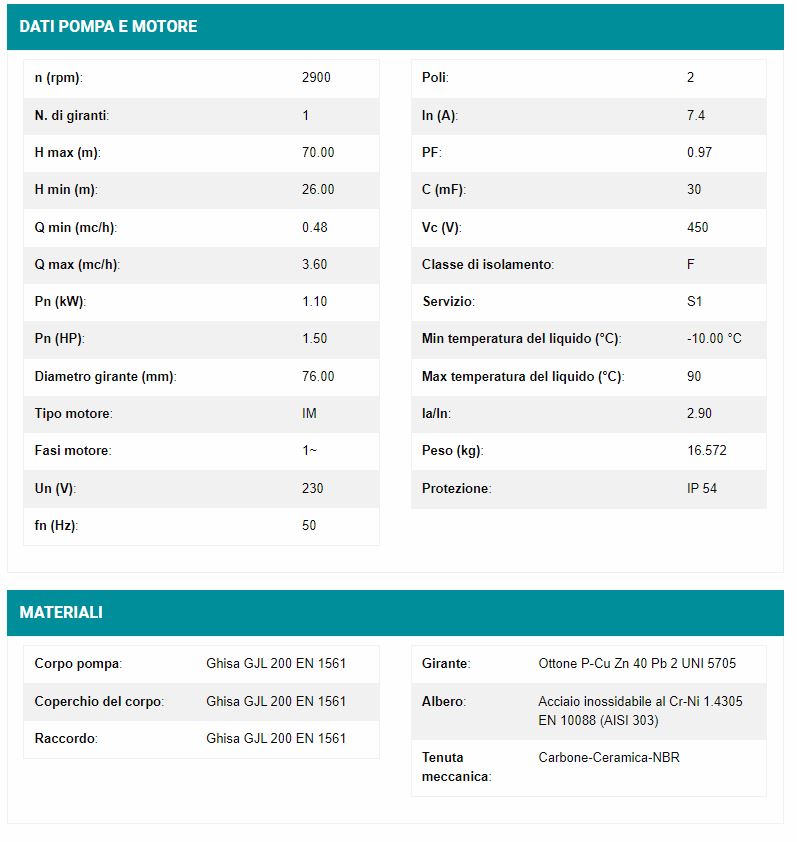

Usage limits.
- Liquid temperature: -10 °C to +90 °C.
- Ambient temperature up to 40 °C.
- Manometric suction height up to 7 m.
- Maximum permissible final pressure in the pump body: T series 12.5 bar, TP series 16 bar.
- Maximum permissible final pressure in the pump body: 6 bar.
- Continuous duty.
Motor
- 2-pole induction motor, 50 Hz (n = 2900 1/min).
- TM, TPM: single-phase 230 V ± 10%, with thermal protector.
- Capacitor inserted in terminal box.
- Insulation class F. IP 54 protection.
- Three-phase motors with efficiency class IE3 (IE2 up to 0.65 kW).
- Execution according to EN 60034-1; EN 60034-30-1. EN 60335-1, EN 60335-2-41.
70100051000
- BRAND
- CALPEDA
- MATERIAL
- CAST IRON
- POWER (Kw)
- 1.1
- ALIMENTATION (V.)
- 230
