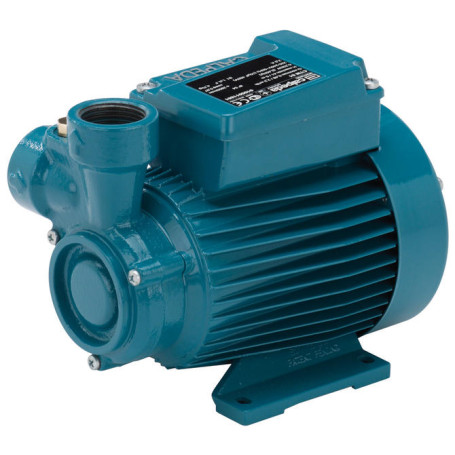

Calpeda electric pump tp 100/b 400v
70000083000
Payment methods
Best E-commerce in Italy for industrial supplies - la Repubblica
24 month warranty
Do you need more information?
Contact us
Paga in comode rate senza costi né interessi
49.71
€
/mese
Usage limits:
- Liquid temperature: -10 °C to +90 °C.
- Ambient temperature up to 40 °C.
- Manometric suction height up to 7 m.
- Maximum permissible final pressure in the pump body: T series 12.5 bar, TP series 16 bar.
- Maximum permissible final pressure in the pump body: 6 bar.
- Continuous duty.
Motor
- 2-pole induction motor, 50 Hz (n = 2900 1/min).
- T, TP: three-phase 230/400 V ± 10%, up to 3 kW; 400/690 V ± 10%, 4 to 7.5 kW.
- Insulation class F.
- IP 54 protection.
- Three-phase motors with efficiency class IE3 (IE2 up to 0.65 kW).
- Execution according to EN 60034-1; EN 60034-30-1. EN 60335-1, EN 60335-2-41.
70000083000
- BRAND
- CALPEDA
- POWER (Kw)
- 2.2
- MATERIAL
- CAST IRON
