APE Straight Male Press Pipe Elbow for Multilayer Pipe.
APL series press fittings, made in accordance with UNI EN ISO 21003-3, UNI EN 1254-3 and DM 174, are designed and manufactured to increase sealing characteristics and reduce assembly time, thus facilitating the installer in installation.
They are equipped with a double o-ring seal and a polyamide ferrule to support the pipe-tightening sleeve, are used in hydro-thermo-sanitary systems, and are available in a diverse range of figures in diameters ranging from Ø16 to Ø32.

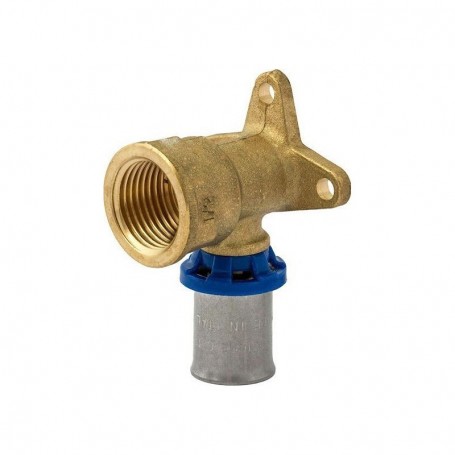

Multilayer press fitting plate/flange 16x1/2"
APE Straight Male Press Pipe Elbow for Multilayer Pipe.
APL series press fittings, made in accordance with UNI EN ISO 21003-3, UNI EN 1254-3 and DM 174, are designed and manufactured to increase sealing characteristics and reduce assembly time, thus facilitating the installer in installation.
They are equipped with a double o-ring seal and a polyamide ferrule to support the pipe-tightening sleeve, are used in hydro-thermo-sanitary systems, and are available in a diverse range of figures in diameters ranging from Ø16 to Ø32.
Payment methods
Description:
Elbow for Multilayer Female Press-Flanged Pipe APE
APL Series press fittings, manufactured in accordance with UNI EN ISO 21003-3, UNI EN 1254-3 and DM 174, are designed and manufactured to increase sealing characteristics and reduce assembly time, thus facilitating the installer in installation.
They are equipped with a double o-ring seal and a polyamide ferrule to support the pipe-tightening sleeve, are used in hydro-thermo-sanitary systems, and are available in a diverse range of figures in diameters from Ø16 to Ø32.
Technical data:
- Field of application: hydro-thermal-sanitary systems
- Application fluid: Potable water, technical water and glycol water
- Percentage of glycol: max 30%
- Temperature range: -25 °C to +120 °C
- Operating pressure: max 16 bar
- Type of piping: multilayer PE-Xb/AL/PE-Xb (in accordance with UNI 21003 standard)
- INCHES
- 16X1/2"
