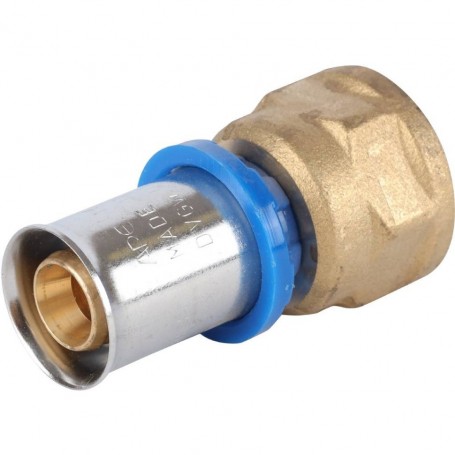

STRAIGHT MULTILAYER FEMALE PRESS FITTING 1 "X32
Straight Female APE Multilayer Pipe Press Fitting
APL series press fittings, made in accordance with UNI EN ISO 21003-3, UNI EN 1254-3 and DM 174, are designed and manufactured to increase sealing characteristics and reduce assembly time, thus facilitating the installer in installation.
They are equipped with a double o-ring seal and a polyamide ferrule to support the pipe-tightening sleeve, are used in hydro-thermo-sanitary systems, and are available in a diverse range of figures in diameters ranging from Ø16 to Ø32.
Accettiamo i seguenti metodi di pagamento
Description:
Straight Female APE Straight Multilayer Press Pipe
Fitting The APL series press fittings, made in accordance with UNI EN ISO 21003-3, UNI EN 1254-3 and DM 174, are designed and manufactured to increase the sealing characteristics and reduce assembly time, thus facilitating the installer in installation
. They areequipped with a double o-ring seal and a polyamide ferrule to support the pipe-tightening sleeve, are used in hydro-thermo-sanitary systems, and are available in a diverse range of figures in diameters ranging from Ø16 to Ø32
.Technical data:
- Field of application: hydro-thermal-sanitary systems
- Application fluid: Potable water, technical water and glycol water
- Percentage of glycol: max 30%
- Temperature range: -25 °C to +120 °C
- Operating pressure: max 16 bar
- Type of piping: multilayer PE-Xb/AL/PE-Xb (in accordance with UNI 21003 standard)
equipped with a double o-ring seal and a polyamide ferrule to support the pipe-tightening sleeve, are used in hydro-thermo-sanitary systems, and are available in a diverse range of figures in diameters from Ø16 to Ø32
.Technical data:
- Field of application: hydro-thermal-sanitary systems
- Application fluid: Potable water, technical water and glycol water
- Percentage of glycol: max 30%
- Temperature range: -25 °C to +120 °C
- Operating pressure: max 16 bar
- Type of piping: multilayer PE-Xb/AL/PE-Xb (in accordance with UNI 21003 standard)
- JOINT
- F
- INCHES
- 1"X32
