Threaded bracket branch-off
For firefighting and thermohydraulic installations - EPDM gasket grade E - pressure
max deservice 21 Bar - allows line branch by shear hole from
pipeline

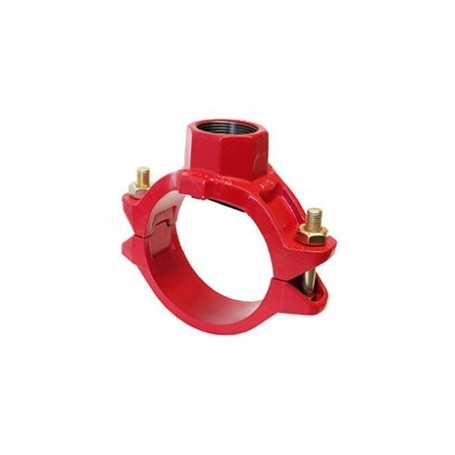

Threaded bracket derivation 4 x 2 painted - gr8lok
Threaded bracket branch-off
For firefighting and thermohydraulic installations - EPDM gasket grade E - pressure
max deservice 21 Bar - allows line branch by shear hole from
pipeline
Payment methods
GASKET
EPDM grade E (Green stripe)
Working temperature from -34C up to +110C. Recommended for conveying water, dilute acids, alkaline solutions, dolio-free air and various chemical applications (see Gasket Table for details). NOT SUITABLE FOR USE IN PETROLEUM OR HYDROCARBON APPLICATIONS. DESCRIPTION The Art.934 Bracket Branch Outlet is a saddle-type outlet fitting, with female BSP thread, which allows a side branch to be made without the need for welding. Featuring an ergonomic design to the pipeline, it ensures ease of installation and fixing, guaranteed tightness and stable operation over time.
MATERIAL SPECIFICATIONS MATERIAL SPECIFICATIONS
BODY: Spheroidal cast iron conforming to ASTM A-536, Grade 65-45-12
HEXAGONAL BOLTS: Hot-treated carbon steel, electrolytically galvanized, oval collar, self-locking head, with mechanical properties according to ISO 898-1 Class 8.8. Screws and hex nuts are electrolytically galvanized, with subsequent yellow chromate coating.
FINISH Anti-rust paint Color: Red (standard) Hot dip galvanizing - (optional)
