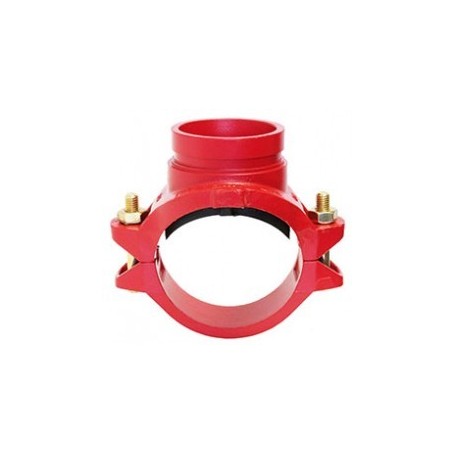

4 X 11/2 PAINTED SCALE BRACKET DERIVATION - Gr8LOK
Grooved bracket branch-off
For firefighting and thermohydraulic installations - EPDM gasket grade E - pressure
max deservice 21 Bar - allows line branch by cutting hole in
pipeline
Accettiamo i seguenti metodi di pagamento
GASKETS
EPDM grade E (Green stripe)
Working temperature from -34C up to +110C.
Recommended for conveying water, dilute acids, alkaline solutions, air without traces of oil, and various
chemical applications (for details, see Gasket Table).
NOT INDICATED FOR USE IN PETROLEPHIC APPLICATIONS OR WITH HYDROCARBONS.
DESCRIPTION
The Art.934 Bracketed Branch is a saddle type fitting, with Grooved outlet, which allows
to make a side branch without the need for welding.
Equipped with an ergonomic design to the pipeline, it ensures ease of installation and fastening, guaranteed tightness and
stability of operation over time.
MATERIAL SPECIFICATIONS
MATERIAL SPECIFICATIONS
BODY:
Spheroidal cast iron conforming to ASTM A-536, Grade 65-45-12
HEXAGONAL BOLTS:
Hot-treated carbon steel, electrolytically galvanized, oval collar, self-locking head, with mechanical propertiesbr />according to ISO 898-1 Class 8.8.
Screws and hex nuts are electrolytically galvanized, with subsequent yellow chromate coating.
FINISH
Anti-rust paint Color: Red (standard)
Hot-dip galvanizing - (optional)
