Lowara Xylem CAM 70/44/C centrifugal big-impeller pump clear water. Single-phase 220-240 V, 50 Hz, 2-pole version with IE2 efficiency level. Ideal for civil, agricultural and industrial applications related to clean water and liquid handling. Power 1.1 kW - Head 33.4/48 m - Flow rate 4.8/1.8 m3/h
Click on the link to return to the category of Lowara AC Electric Pumps

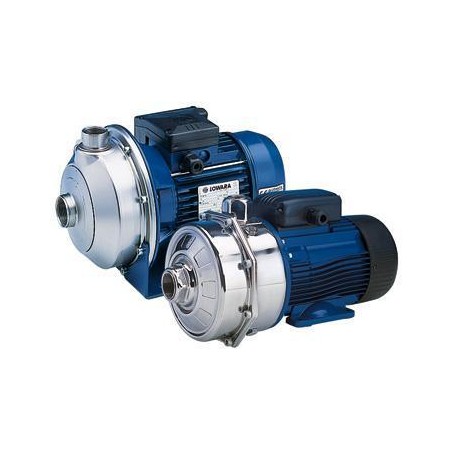

Lowara electric pump cam 70/44/c - 1.1 kw / 1.5 hp - 230 v / 50hz
Lowara Xylem CAM 70/44/C centrifugal big-impeller pump clear water. Single-phase 220-240 V, 50 Hz, 2-pole version with IE2 efficiency level. Ideal for civil, agricultural and industrial applications related to clean water and liquid handling. Power 1.1 kW - Head 33.4/48 m - Flow rate 4.8/1.8 m3/h
Click on the link to return to the category of Lowara AC Electric Pumps
Payment methods



Description
Lowara Xylem CAM 70/44/C centrifugal big-impeller pump clear water single-phase 1.5 HP/1.1 kW
Power 1.1 kW - Head 33.4/48 m - Flow rate 4.8/1.8 m3/h
The Lowara CAM 70/44 pump is a horizontal big-impeller centrifugal electric pump with axial suction and radial discharge ideal for civil, agricultural and industrial applications. Specifically, this pump is useful for conveying clean water and liquids free of contamination, thus chemically non-aggressive, for water supply and pressurization, irrigation and water circulation in air conditioning systems.
The Lowara CAM 70/44 pump is a real gem, both hydraulically and mechanically. Analyzing the construction features, we highlight the AISI 304 stainless steel impeller, keyed directly to the motor shaft projection and special coupling lantern for excellent assembly, a mix that ensures stability, precision and high performance. Mechanical seals are in Ceramic/Carbon with elastomers and O-rings in NBR and remaining parts in stainless steel, thus a perfect balance between flexibility and solidity designed to achieve the highest efficiencies in thermal efficiency and composition. "Back pull out" execution i.e., possibility to service the pump without removing it from the piping, allowing quick and simplified removal of impeller, lantern and motor. The Rp 1¼" suction and Rp 1" discharge ports are both threaded and the support foot is on the motor.
Additional technical features include: short-circuit cage motor of the externally ventilated closed type, single-phase 220-240 V, 50 Hz, 2 Poles, with efficiency level IE2; condensate drain plugs; protection rating: IP 55 as motor (EN 60034-1) - IP X5 as electric pump (EN 60335-1); built-in automatic reset overload protection; rotation is counterclockwise when looking at the pump from the suction port side; and performance according to EN 60034-1. Some precautions are then essential for proper use: ambient operating temperature max 45°C; pumped liquid temperature -10°C to +85°C; maximum operating pressure 8 bar.
DIMENSIONS
- Width 208 mm_Height 242 mm_Depth 420 mm
- Weight 16 kg
- BRAND
- LOWARA
- ALIMENTATION (V.)
- 230
- POWER (Kw)
- 1.1
