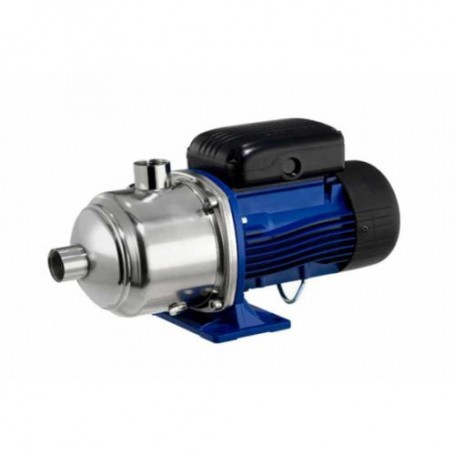

Lowara centrifugal electric pump 5hm06p11m5hvbe 220-240v 50hz

Description

Horizontal multistage centrifugal electric pumps from LOWARA, extremely quiet and high efficiency.

PRODUCT FEATURES.

- Compact and solid design.

- Wide performance range with 6 sizes and a flow rate up to 29m3/h.

- Pressure rating of 10 bar with NorylTM impellers and 16 bar with stainless steel impellers.

- IE3 Lowara motor: high performance and quiet operation.

The e-HM series and the different configurations available are designed to cover a wide range of applications in residential and small commercial building services, from water supply to pressurization systems as well as heating and cooling applications.

EMPLOYMENTS

• The e-HM™ series can be installed in both single private homes and small/medium residential buildings.
• The e-HM series is also an ideal choice for water supply and pressurization systems in offices and stores in small buildings.
• The e-HM series can also be installed in small/medium sized irrigation systems.

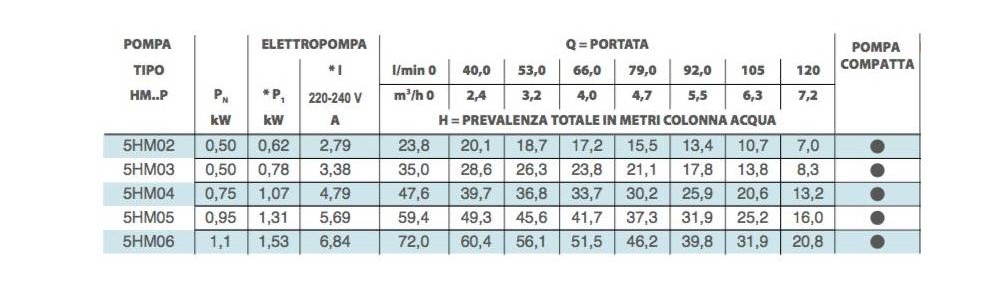

SPECIFICATIONS

- Flow rate: up to 29 m³/h

- Head: up to 160 m

- Power supply: single and three-phase 50 and 60 Hz

- Power: from 0.30 kW up to 5.50 kW

- Maximum pressure: 16 bar

- Liquid temperature from -10°C to 120°C
