Lowara centirfuge electric pump 3hm04p05m5hvbe 220-240v 50hz

Description

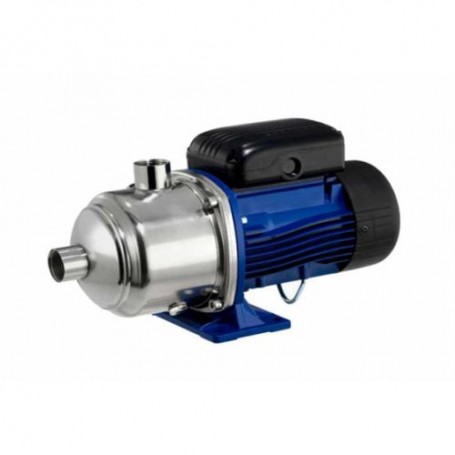

Lowara horizontal multistage centrifugal electric pump 3HM04P05M5HVBE

Horizontal multistage centrifugal electric pump with threaded ports, technopolymer impellers, AISI 304 stainless steel pump body and diffusers

Uses

The e-HM series can be installed in both single private dwellings, small/medium residential buildings for water supply and pressurization systems such as:

• Water supply
• Rainwater harvesting
• Pressurization
• Irrigation

Benefits

• Return on investment: the installation of the e-HM guarantees a very quick return on investment as the high level of efficiency makes the e-HM the fixed-speed pump with the lowest energy consumption on the market
• Reliability: the e-HM series also ensures reliable operations over time due to its durable and innovative design
• Comfort: the e-HM series provides increased user comfort through very quiet operation

Technical Data.

• Operating pressure: 10 bar
• Ambient temperature: 0°C ÷ 40°C
• Liquid temperature: max 60°C

Motor data

• Power KW: 0.5
• Power HP: 0.7
• Power supply: 220-240V
• Insulation class: F
• Degree of protection: IP55

Materials

• Pump body: AISI304 stainless steel
• Impeller: Noryl
• Elastomers: EPDM
• Mechanical seal: Ceramic-carbon-EPDM
• Mechanical seal Q1BE: Silicon carbide-carbon-EPDM
