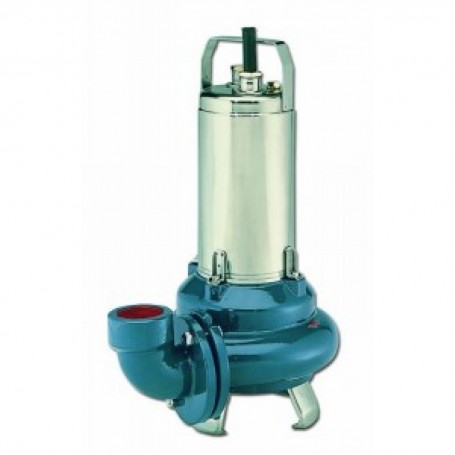

Electric pump lowara dlm109/a elp 220-240 50

Description:

LOWARA DLM 109/A kW 1.1 HP 1.5 SUBMERGED WATER ELECTRIC PUMP FOR WASTE WATER

SINGLE-PHASE VERSION WITHOUT FLOAT SWITCH

DL series electric pumps are available with either single-channel or vortex (DLV) impeller. Sewage pump with head up to 18.3 m and flow rate up to 36 m3/h. Rated power 1.1 kW - HP 1.5 Free passage 50 mm.

Applications:

- Handling of sewage even with suspended solids and filamentous matter.

- Emptying cesspools, sewage collection pits from septic tanks and water collection pits in general.

- Draining of excavations and marshy soils.

Characteristics:

- Maximum Liquid temperature:50°C with pump totally submerged.25°C with pump partially submerged.

- Mechanical seal protected by sand guard labyrinth.

- Maximum size of suspended solids:

45 mm for DL80, DL90, DL105, MINIVORTEX and VORTEX.50 mm for DL109, DL125, DLV100 and DLV115.

- Oil bath motor (non-toxic and dielectric) for ball bearing lubrication and better cooling.

- Power cable: H07RN-F single-phase: provided with plug. three-phase: without plug 5 meters (for outdoor use 10 meters cable required)

- Insulation class 155°C (F).

- Degree of protection: IPX8.

- Maximum immersion depth: 5 m.

- Versions: Single-phase: 220-240 V, 50 Hz 2 poles. Three-phase: 220-240 V, 50 Hz 2 poles.380-415 V, 50 Hz 2 poles.

- Single-phase versions have: capacitor housed in a square on the power cable + 1.5 m.
