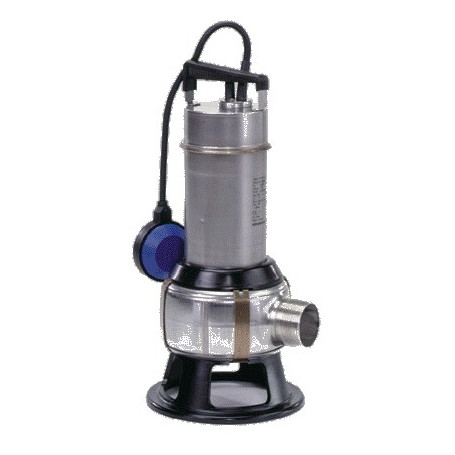

Single-impeller vertical stainless steel submersible pump complete with asynchronous electric motor. The pump is complete with a support base and carrying handle. It is supplied with a 5 m power
cable and level switch with 10 m cable for automatic operation
.
The impeller is VORTEX type with maximum solid body diameter up to 50 mm suitable for pumping surface water, seepage water, wastewater and sewage.
The pump has a double mechanical seal and an intermediate oil chamber filled with non-toxic
special oil. The stator is in insulation class F. The motor has thermal protection and has
prelubricated ball bearings for life.
The pump has a R 2" inch delivery port and is suitable for temporary installation on its own support base or permanent installation by means of quick coupling system on rails.
Liquid:
Pumped liquid: Any Newtonian fluid
Max liquid temp: 40 °C
Density: 998.2 kg/m³
Technical:
Impeller type: VORTEX
Max particle size: 50 mm
Materials:
Pump housing: Stainless steel DIN W.-Nr. 1.430
AISI 304
Impeller: Stainless steel
DIN W.-No. 1.4301
AISI 304
Installation:
Pump discharge: R 2"
Max. installation depth: 2 m
Electrical data:
Motor type: PSC
C drive: 16 μF
Power consumption - P1: 1.2 kW
Mains frequency: 50 Hz
Voltage: 1 x 230 V
Current: 5.37 A
Cos phi - power factor: 0.97
Rated speed: 2790 rpm
Capacitor capacity - run: 16 μF/400 V
Protection class (IEC 34-5): IP68
Insulation class (IEC 85 ): F
Cable length: 5 m
Cable plug type: SCHUKO
Others:
Net weight: 10.2 kg
Gross weight: 11.2 kg
- BRAND
- GRUNDFOS
- MATERIAL
- STAINLESS STEEL
- POWER (Kw)
- 1.2
- ALIMENTATION (V.)
- 400
