Single-phase automatic direct starter for 2 electric motors with voltmeter and ammeters
Shipping expected within 7 working days

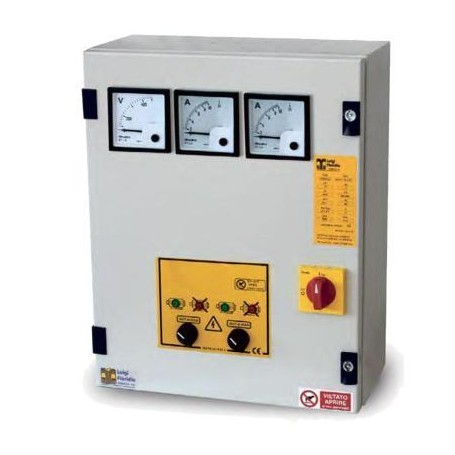

Single phase direct starter adma2p-l-va 2/23 9-14a
Single-phase automatic direct starter for 2 electric motors with voltmeter and ammeters
Payment methods
Best E-commerce in Italy for industrial supplies - la Repubblica
24 month warranty
Do you need more information?
Contact us
COMPOSITION:
- Sheet metal case, RAL 7035
- Door-blocking switch-disconnector
- Fuses for each electric motor
- 2 contactors
- 2 thermal relays
- Voltmeter 72x72 mm
- 2 ammeters 72x72 mm
- 2 ammeter transformers (20 Hp size only)
- 400-230/24V safety transformer for auxiliary circuit
- Fuses for transformer and auxiliary circuit protection
- 2 green indicator lights (running)
- 2 red indicator lights (lockout)
- 2 AUT-0-MAN selectors
- Control unit for alternation for 2 electric motors
- Terminal board (motor output, float/pressure switch arrangement)
- 2 mounting brackets
- Instruction booklet
TECHNICAL FEATURES:
- Supply voltage 230 Vac ±10%
- Working frequency 50/60 Hz
- Degree of protection IP55
- Operating temperature -5 /+40°C
- 3 extra-low voltage inputs for pressure switches or floats (dry contacts)

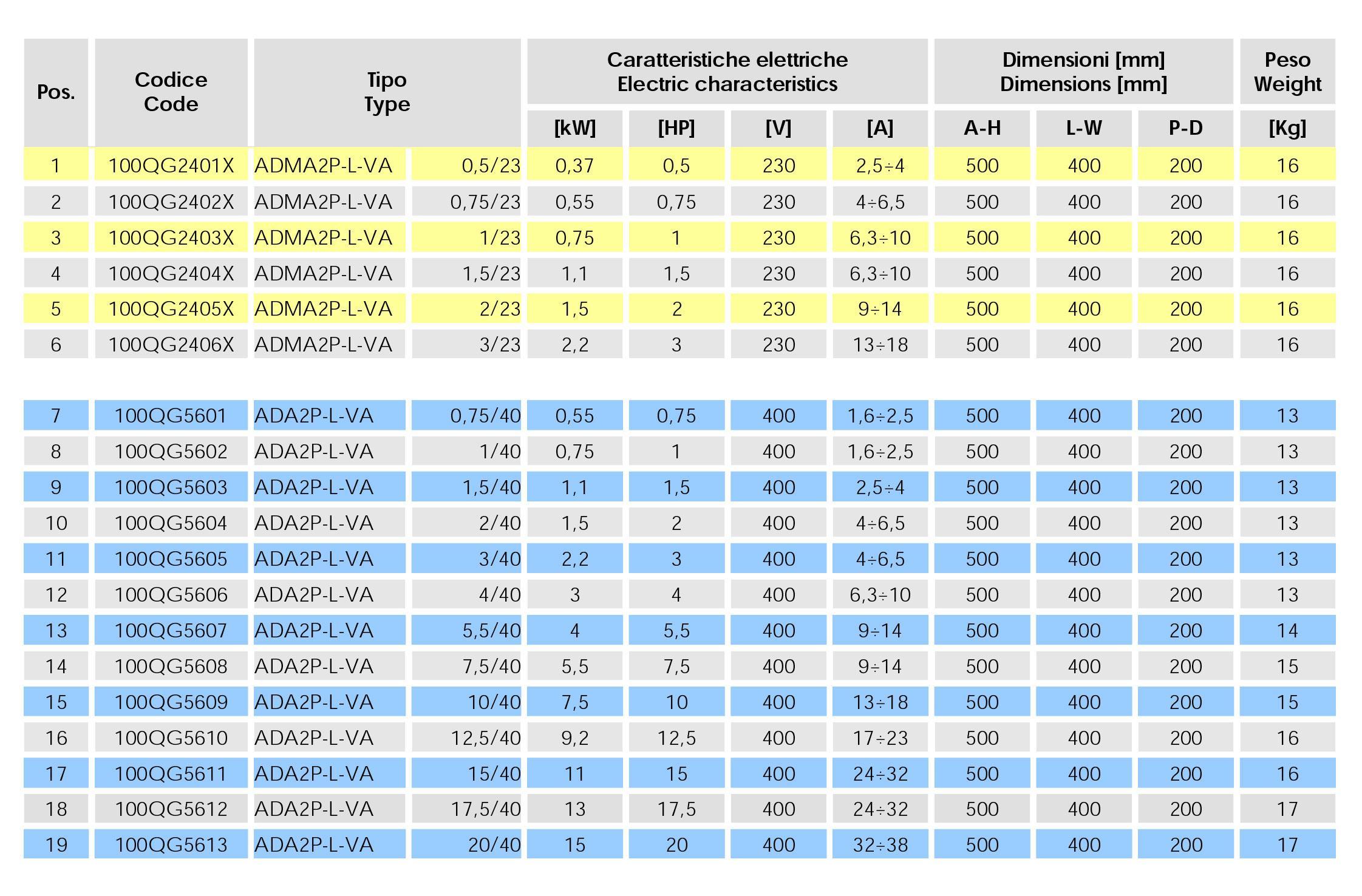

100QG2405X
- BRAND
- FLORIDA
- ALIMENTATION (V.)
- 230
- CORRENTE D'IMPIEGO
- 9-14
