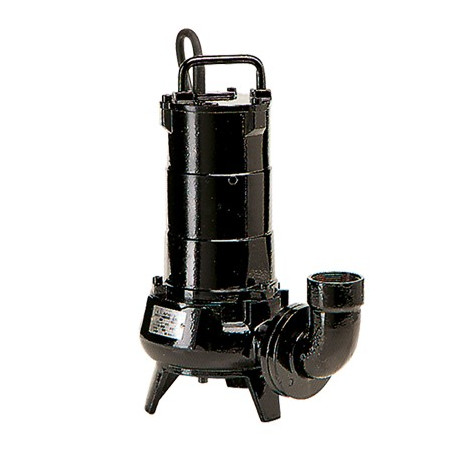

Caprari electric pump mxv09t2 v.400 kw0.9

MXV electric pumps combine maneuverability with the ability to smoothly convey water with small solids and fibrous matter. Particularly suitable for lifting screened wastewater and for draining underground rooms, they are equipped with a backward open impeller.

LIMITS OF USE

- max. temperature of pumped liquid = 40°C;

- max. depth of immersion = 20 m;

- PH of the pumped liquid: 6 ÷ 10

- supply voltages and relative permissible variation from rated voltage:

- single-phase: 220 V - 230 V ±6% standard 230 V - 240 V ±6% on request

- three-phase: 400 V ±10% (380-400-415) standard 230 V ±10% (220-230-240) on request

- other voltages with ±5% on request

- maximum unbalance allowed on the absorbed current: 5%

- consult our technical offices in the presence of a density higher than 1 kg/dm3 and/or a viscosity higher than 1 mm2 /s (1 cSt)

- the electric pump generates a sound pressure level below 70 dB(A).

INSTALLATION

The electric pump is installed in the sump and can be used:

- connected to flexible piping

- connected to rigid piping directly to the threaded delivery port

- automatic control is possible using special equipment CONSTRUCTION.

- backward open impeller

- front mechanical seal plus seal ring on motor shaft

- in single-phase models the capacitor is built into the motor

- amperometric thermal protection and float switch for automatic operation incorporated as standard in single-phase models

- oil-immersed motor, (mod. MXV07...) and air-immersed motor (mod. MXV09); in insulation class F and IP68 degree of protection

- stainless steel screws and nuts.
