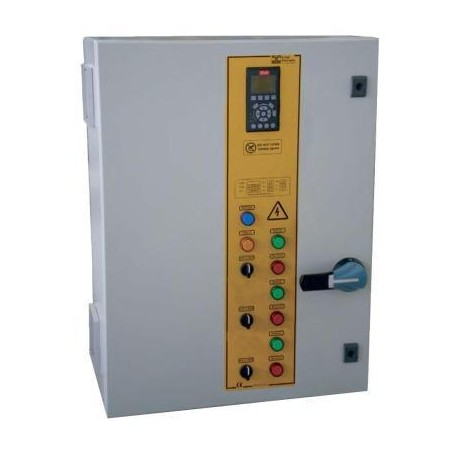

3p ai3p variable drive frequency converter 7.5/40fs 5.5kw

COMPOSITION:

• Sheet metal case, RAL 7035
• Door-blocking switch-disconnector
• Fuses for each electric motor
• Variable drive inverter
• Remote display
• 2 direct starts (up to 20 HP):

- 2 Contactors - 2 Thermal relays

• 2 star delta starters (25 HP and up):

- 6 Contactors - 2 Thermal relays - 2 Star-delta timers - 2 Run-Stop buttons

• 400/24 V safety transformer for auxiliary circuit.
• Fuses for transformer and auxiliary circuit protection.
• 3 AUT-0-MAN selectors
• Blue indicator light (mains presence)
• 3 green indicator lights (run)
• 3 red indicator lights (lockout)
• Yellow indicator light (level)
• Forced ventilation complete with grilles
• Drive programming
• Terminal board (motor output, setup 2 floats, transducer, remote alarm output, thermistor, analog output, Setup 2 enable)
• 4 mounting brackets
• Instruction booklet

TECHNICAL FEATURES:

• Supply voltage 400 Vac ±10%.
• Working frequency 50/60 Hz
• Degree of protection IP55
• Operating temperature -5/+40°C

Remarks:

Maximum cable length from switchboard to motor: 300 mt. Beyond this distance, a filter must be inserted (see the accessories section at the end of this series)
