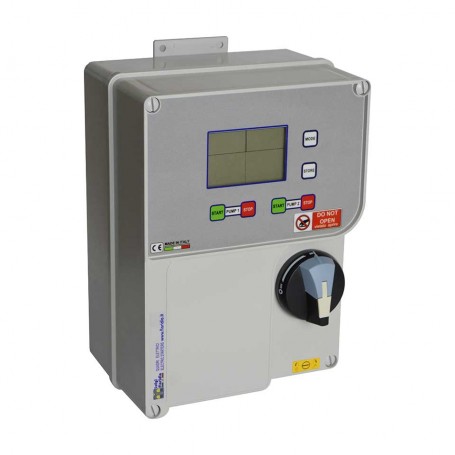

Electrical panel ade2p-de 7.5-15/40 5.5-11kw (6-25a) 400v lcd

COMPOSITION:

• ABS box (type V0)
• Door lock switch-disconnector
• General fuses (Pos. 01 and 02)
• Thermal-magnetic circuit breaker (Pos. 03)
• 2 Contactors
• Mother board
• LCD panel board with graphic representation of panel functions
• Cable glands
• Fixing brackets
• Instruction booklet

TECHNICAL CHARACTERISTICS:

• Supply voltage 400 Vac ±10%
• Working frequency 50/60 Hz
• Degree of protection IP55
• Operating temperature -5/+50°C

PROTECTIONS:

• Dry run with minimum current
• Overload
• Locked rotor
• Minimum/maximum voltage
• Excessive starting.
• Phase failure

SETTINGS AND CONTROLS:

• Dry run delay
• Dry run recovery time
• Overload reset time
• Reset time for minimum/maximum voltage)
• Motor rated current
• Motor current for dry run startup (%)
• Motor current for overload (%)
• Motor current for locked rotor (%)
• Minimum voltage
• Maximum voltage
• Counter
• Water lifting application selection
• Select pressurization application
• Dirty water application selection
• Automatic periodic startup for blockage prevention
• Self-configuration.

FUNCTIONS:

• 2 Start keys
• 2 Stop keys
• Key to select AUT/MAN mode
• Auto calibration key
• Beeper (buzzer)
• LCD display to show:

- Mains voltage; - Motor current; - Motor status; - Tank level status; - Well level status; - Alarms (last 5 of which are in memory); - Motor operating hours; - All messages related to motor operation; - Alternation and sequence system.
