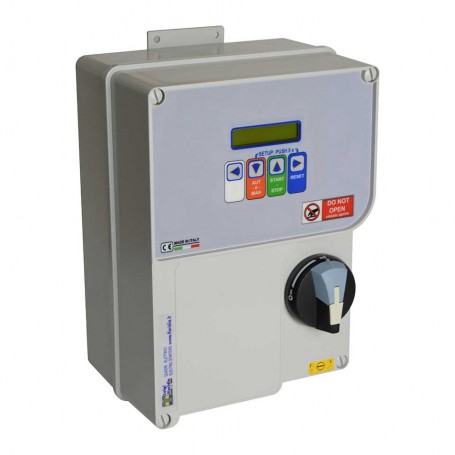

Three-phase electronic direct starter with LCD display panel board
Three-phase electronic direct starter with level probes, digital
Three-phase electronic direct starter with LCD display panel board
Payment methods
COMPOSITION:
- ABS box (type V0)
- Door lock switch-disconnect switch
- Mother board
- LCD panel board
- Fuses
- Contactor
- Cable glands
- Instruction booklet
TECHNICAL FEATURES:
- Supply voltage 400 Vac ±10%
- Working frequency 50/60 Hz
- Degree of protection IP55
- Operating temperature -5/+40°C
- Very low voltage input for pressure switch or float switch (dry contact)
- Input for level probes
- Key for Automatic-O-Manual operation
- Keys for parameter settings
- Liquid crystal display for displaying:
- Line voltage; - Motor current; - Motor power; - Probe status; - Alarms; - All messages related to motor operation; - Multilingual: Italian, English, Spanish, German, French.
PROTECTIONS:
- Minimum/maximum voltage
- Minimum/maximum current
- Lack of current phase(s)
- Dry running via probes
- Phase sequence and unbalance
- Power circuit protection fuse(s)
- Electronic board circuit protection fuse
SETTINGS AND CONTROLS:
- Language
- Mains re-entry delay
- Minimum voltage
- Maximum voltage
- Minimum/maximum current
- Phase imbalance
- Thermal delay
- Level probe setting: filling or emptying
- Automatic reset mode
- Self-configuration
Probe sensitivity: 5 to 120 kΩ (trimmer)
- BRAND
- FLORIDA
- POWER (Kw)
- ALIMENTATION (V.)
- 400
- CORRENTE D'IMPIEGO
