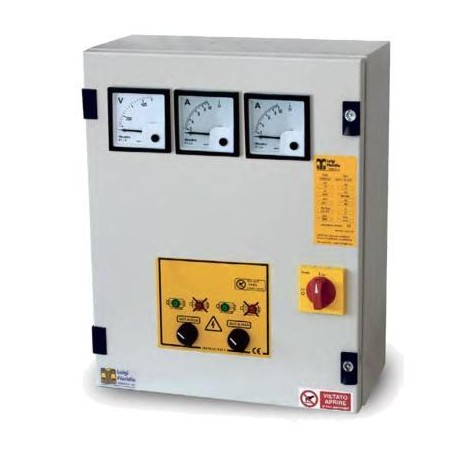

3-PHASE 2P ADA2P-L-VA DIRECT STARTER 2X4KW (9-14A) 400V + ACCESSORIES

ACCESSORIES:

• ALARM CIRCUIT WITH FLASHING SIREN
• DIRTY WATER OPERATION KIT COMPLETE WITH RELAY AND 4 AUXILIARY TERMINALS

COMPOSITION:

• Sheet metal case, RAL 7035
• Door-blocking switch-disconnector
• Fuses for each electric motor
• 2 contactors
• 2 thermal relays
• Voltmeter 72x72 mm
• 2 ammeters 72x72 mm
• 2 ammeter transformers (20 Hp size only)
• 400-230/24V safety transformer for auxiliary circuit
• Fuses for transformer and auxiliary circuit protection
• 2 green indicator lights (running)
• 2 red indicator lights (lockout)
• 2 AUT-0-MAN selectors
• Control unit for alternation for 2 electric motors
• Terminal board (motor output, float/pressure switch arrangement)
• 2 mounting brackets
• Instruction booklet

TECHNICAL CHARACTERISTICS:

• Supply voltage 400 Vac ±10%
• Working frequency 50/60 Hz
• Degree of protection IP55
• Operating temperature -5 /+40°C
• 3 extra-low voltage inputs for pressure switches or floats (dry contacts)
