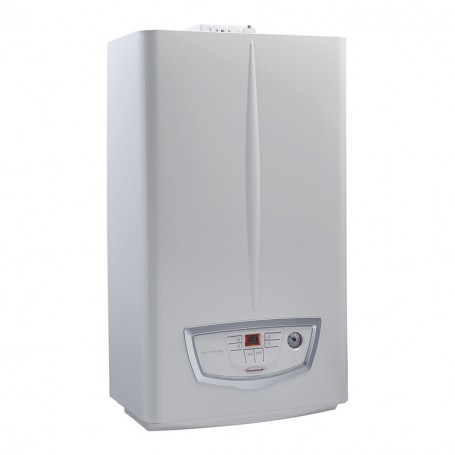

CONDENSING BOILER IMMERGAS MYTHOS HP GPL | 3.029801GPL

Immergas Mythos HP condensing boiler is Ideal for heating up to 150 square meters with an average height of about 2.7 m.

The new Mythos HP Immergas condensing boiler is specially designed for replacements of traditional boilers in radiator systems, with medium to high temperature. MYTHOS HP is designed to meet the new European Directives on energy use; in fact, it has a traditional copper exchanger and a heat recovery unit with condensate drain trap. It develops 24 kW of power for space heating and instantaneous domestic hot water production and, thanks to its reduced emissions of nitrogen oxides (NOx), it falls under class 6, the most environmentally friendly of the European regulations. In addition, it allows flue gases to be discharged to the wall in the cases provided for by Decree Law 102 of July 4, 2014. It also represents the ideal boiler for replacing conventional sealed chamber and forced draft boilers connected to collective flues. The MYTHOS HP boiler is extremely compact, finds space even in homes with limited space, and can be installed outdoors in a partially protected location or built-in in OMNI CONTAINER. The simple and essential interface consists of a central LCD display and selection buttons to adjust temperatures and operating modes. It is possible to control the unit remotely by means of a CarV2 modulating thermostat with remote boiler controls (to be purchased separately code 3.021395), which allows better climatic regulation of room temperature. It in fact replaces the boiler control panel by performing all its functions.

The boiler is approved for operation outside the home as long as it is partially protected from the weather, for example, by installing it under a balcony. The MYTHOS HP condensing boiler is equipped with a copper exchanger connected to the high-efficiency condensing element (heat recuperator) and a burner with low pollutant emissions. The heat recuperator, located downstream of the copper exchanger, is completion made of stainless steel to ensure inalterability over time and maximum efficiency. It represents the condensing solution, in case of replacement of traditional generators on radiator systems that need medium-high temperatures to ensure environmental comfort. MYTHOS HP cannot be installed with direct delivery to low-temperature radiant panel systems: external mixing to the generator must be provided.

GUARANTEED SAVINGS AND HIGH COMFORT

• Tax relief: can take advantage of current tax deductions, especially BONUS CASA 50%.
• Low consumption: the low-consumption circulator provides significant electricity savings.
• Standard: plumbing connection cover improves aesthetics in home environments.
• Easy operation: practical buttons and a backlit display make it easy to manage and view the boiler setting.
• SMARTECH PLUS (optional item no. 3.030909 ). Control boilers remotely and save money: The hi-tech SMART wireless chronothermostat (to be purchased separately) with Bluetooth technology also allows you to adjust the heating temperature with a smartphone or tablet through a dedicated app.
• Eco-friendly technology: complies with European ErP and ELD Directives, enables high energy efficiency classes in heating and hot water production.
• Ecological class 6 (European Standards UNI 297 and 483): the best for reduced emissions of nitrogen oxides (NOX).
• Installation: approved to operate indoors, outdoors in partially protected locations and built-in. IPX5D electrical protection. Antifreeze as standard down to -5 °C.

DIMENSIONS

• Compact: convenient and easy to install.
• HxWxD: mm 786 x 440 x 240

WARRANTY

The warranty is the official Immergas warranty and is valid for 2 years.
