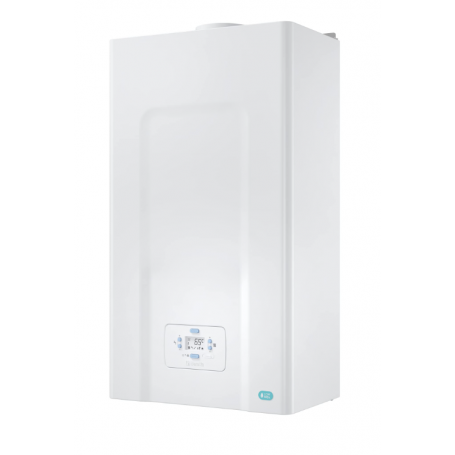

BERETTA CIAO AT 25C LOW NOX LPG CONDENSING BOILER WITH STAINLESS STEEL EXCHANGER | 20176941

BERETTA PRESENTS THE NEW CIAO AT, THE CONDENSING BOILER SPECIFICALLY FOR REPLACEMENT IN TRADITIONAL HIGH-TEMPERATURE SYSTEMS

CIAO AT with stainless steel exchanger

The new CIAO AT range is offered in two 25 kW combined models, with natural gas and LPG supply, respectively. Both models are equipped with DIN-standard hydraulic connections, allowing easy replacement even of boilers with hydraulic standards other than Beretta. There are many new features compared to the previous range. First, the new stainless steel and composite material after-exchanger, which allows it to pre-heat the return water from the primary circuit using waste heat from the flue gases. The cooled burner, the new electronics and interface, and the reduced depth of the boiler, which allows it to be installed even in small recesses, complete the innovative profile of this product, which is set to become the reference in the specific segment of replacement in radiator systems. The simple and linear design, in line with Beretta's style, compact dimensions and installation flexibility make CIAO AT easy to integrate in any living context, both inside homes and outdoors (in partially protected places) or built-in, even through dedicated accessories.

Technical Features:

• New layout with compact size and reduced weight (only 31 kg!) for easy transport and built-in installation
• Traditional copper primary exchanger
• New and robust stainless steel finned pack after-exchanger with taste and composite material
• Sanitary plate heat exchanger with preheating capability
• Innovative gas-air combustion supervision system
• Sealed chamber and forced draft boiler with cooled low NOx burner
• Automatic by-pass as standard
• Modulation range 1:3
• Low-consumption circulator (EEI ≤ 0.20), 6 m, with anti-blocking
• Analog hydrometer as standard
• Low NOx emissions : CLASS 6 (EN 15502-1)
• Innovative gas valve adjustment procedure
• DIN-type hydraulic connection sequence , ideal for replacement of products with same type of connections
• Maximum installation flexibility : Indoor, outdoor and recessed installation (in partially protected location)
• Antifreeze heater kit, Hydraulic connections and outdoor probe available as accessories
• New flue flange with click fit connection: Fast and safe, no need for external collar
• Electrical degree of protection IPX5D
• Boiler support jig available as an accessory
• Compatible with BeSmart control
• Thermostat
• Dedicated lpg code: contact authorized beretta service centers for conversion

LOW NOX BURNER

CIAO AT is able to meet the most demanding requirements in terms of low emissions in order to make heating appliances less polluting. Thanks to CIAO AT's innovative hyperstechiometric-type burner, a very low flame temperature is achieved as an effect. From this feature, in combination with the cooling of the burner through the water of the heating circuit, comes a significant lowering of the polluting values of carbon monoxide and nitrogen produced by combustion, such that the new limits imposed by the regulations (EU Regulation 814/2013) are met with flying colors.

NEW INTERFACE

CIAO AT's new digital interface, designed with a focus on ease of use, features a modern backlit display that allows immediate and complete reading of information on the machine's operating status, both for the user and for the installer or maintainer. Through six keys with intuitive functionality, it is possible to easily adjust both heating and sanitary temperature, as well as access the configuration of machine parameters, rather than reset alarm states.

UNIVERSAL INSTALLATION

Ciao AT is designed so that it can also be installed outdoors in partially protected locations or contained recesses (e.g., Beretta's Edilbox), thanks to its board frost protection down to 0°C. In colder temperatures, it is possible to extend protection down to -10°C by using the appropriate frost heater kit.

Product Warranty

All products for sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

Technical Data Sheet

• weight: 35.0 kg
• energy class acs production: A
• heating energy class: B
• gas: Methane
• brand: BERETTA
• square meters : 150
• model: 20176935
• power in kw: 25
• rated power: 25
• heatable area sqm: 150
