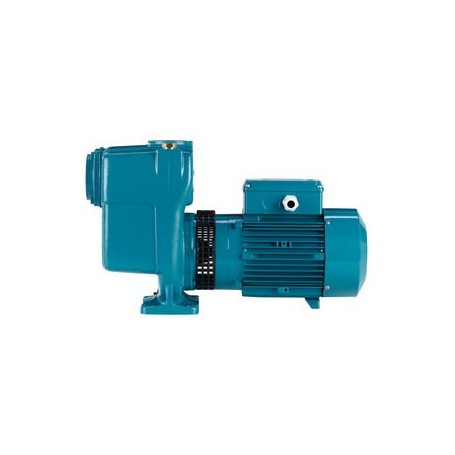

Calpeda electropom nmp 50/12ha 1.1kw 400/50 hz

Execution:

• Self-priming monoblock centrifugal electric pumps with built-in prefilter.
• Inner basket with Ø 3 mm holes.
• NMP: version with cast iron pump body and fitting.
• B-NMP: version with bronze pump body and fitting.
• Bronze pumps are supplied fully painted.

Uses:

• For circulating water in swimming pool filtration systems.
• For clean or slightly dirty water with suspended solids.

Limits of use:

• Liquid temperature up to 60 °C.
• Ambient temperature up to 40 °C. Manometric suction height up to 7 m.
• Maximum permissible final pressure in the pump body 6 bar.
• Continuous duty.

Filtration pump for POOL 54m3/h Three-phase 1.5Hp Calpeda NMP 50/12H/A with self-priming filter Motor

• 2-pole induction motor, 50 Hz (n = 2900 1/min).
• NMP: 3-phase 230/400 V ± 10% up to 3 kW;
• 400/690 V ± 10% from 4 to 7.5 kW.
• NMPM: single-phase 230 V ± 10%, with thermal protector.
• Class F insulation.
• IP X4 protection.
