Elbi double coil vitrified kettle 200lt

Description:

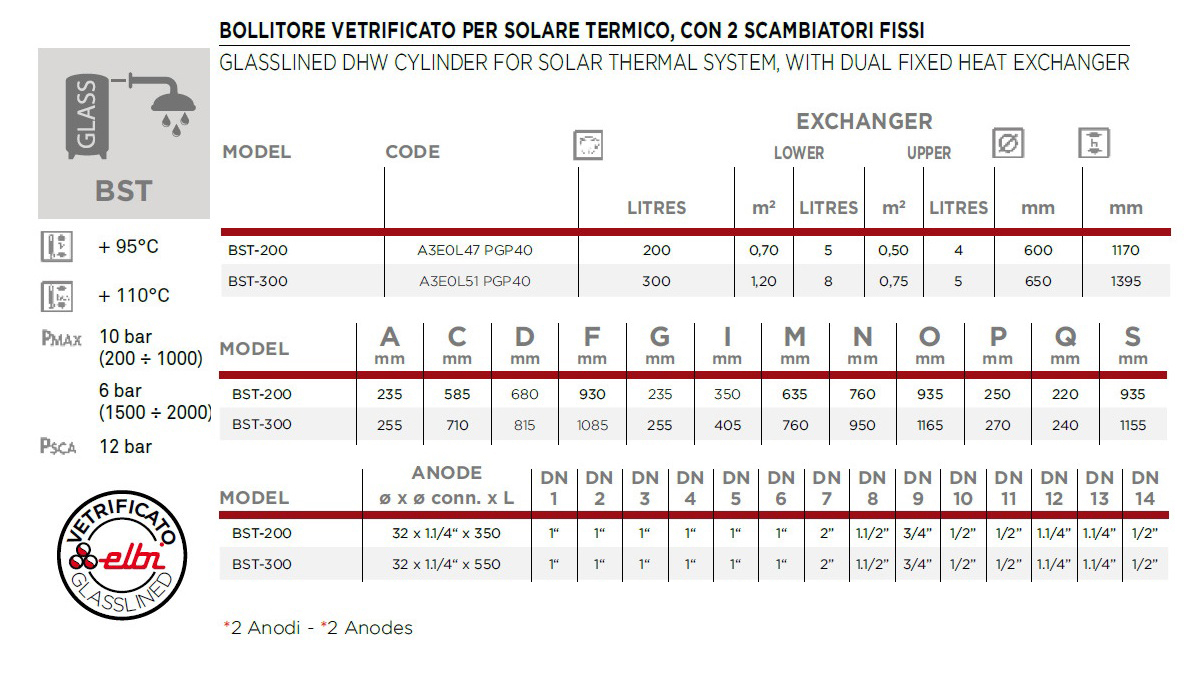

The Elbi vitrified solar thermal storage tank with two fixed exchangers. Model BST200 Liters

The Elbi BST 200 High Efficiency Kettle with fixed double coil, are particularly suitable for 'use in systems that use as primary sources, for the production of domestic hot water, renewable energy (solar thermal, geothermal, heat pumps).

This product makes it possible to achieve a balance between the amount of hot water stored, so as to make the most of the daily period of maximum irradiation, and the rapidity in delivering DHW during critical peak periods. The criticality of peak periods is solved by supplementing energy by feeding the upper exchanger with a boiler.

Due to the anticorrosive vitrification treatment favors the use of Elbi BST-200 A3E0L47-PGP40 boiler to 'sanitary hot water use, and corrosion resistance.

These boilers are well-insulated products to limit heat loss.

INSTALLATIONS:

• traditional boilers (wall and/or floor standing);
• condensing boilers;
• solar thermal systems.

PERFORMANCES:

• Body: Max operating pressure: 10 bar;
• Max operating temperature: + 95° C;
• Exchanger: Max operating pressure: 12 bar;
• Max operating temperature: + 110° C.
• Anode with tester;
• Internal anticorrosive vitrification treatment;
• Polyurethane insulation.
