The Asameter® V6, is a baffle flow meter with return spring and index flow reading. Suitable for water and gas flows, it is designed for horizontal or vertical mounting applications depending on the customer's specific requirement. Straight sections downstream and upstream of the meter are not required, and pressure drops are almost nonexistent.

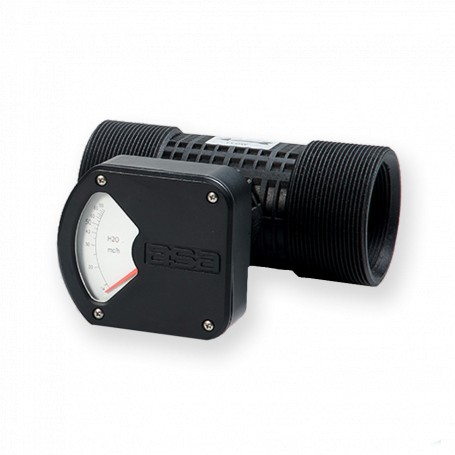

Baffle asameter dn80 pn 10/16 flow rate 35-200 m³/h
The Asameter® V6, is a baffle flow meter with return spring and index flow reading. Suitable for water and gas flows, it is designed for horizontal or vertical mounting applications depending on the customer's specific requirement. Straight sections downstream and upstream of the meter are not required, and pressure drops are almost nonexistent.
Payment methods
TECHNICAL DATA.
TEE EXECUTION
Gauge: 160mm(200mmwith reductions) DN available: DN25-DN32-DN40-DN50 Connections: f/f 2". Available on request reductions from 1" - 1"1/4 -1" 1/2 gas F
EXECUTION FOR MONITORING BETWEEN FLANGES
Gauge: 52 mm DN available: DN65 - DN80 Suitable flanges: DN65 PN10-PN16; DN80 PN10-PN16; ANSI150; ANSI300 Accuracy: ±5%v.f.s.; higher on request Operating temperature range: -10°C ÷ +60°C Maximum operating pressure: 16 bar g Degree of protection of housing: IP65 Materials of parts in contact with fluid: PA 30%FV/PVC, PTFE, AISI 316L, brass Materials of measuring extension: PA6 30%FV housing with PC reading window; internal parts made of PVC, PA6 30%FV, aluminum and AISI 316L
- DIAMETER (mm)
- 80
- PN
- 10/16
