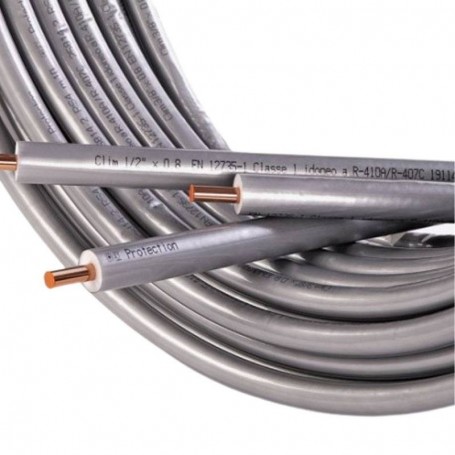

Smisol clim platinum copper tube 5/8x1 |1 meter

Features:

Copper pipe manufactured according to EN 12735-1, and is pre-insulated in closed-cell expanded polyethylene of regular and uniformly distributed dimensions (UNI EN 14114). The diameter of the copper pipe, as required by EN 12735-1, is expressed in inches.

The insulating sheathing is produced in full compliance with European EEC/EU Regulation 2037/2000, which requires the use of expanded insulating sheathing without the use of CFCs and HCFCs, gases that are harmful to health and the environment. The thickness of the sheathing is also sized to meet the multiple requirements of this field of application. In view of the special specificity of the field of use, special attention is paid to the outer polyethylene protective film aimed at preventing the formation of condensation on the outer wall of the product.

SMISOL Clim Platinum is also distinguished by particularly low eccentricity values, a feature that is very important for the cartoning operation.

Coating characteristics:

• Thermal conductivity: l= 0.040 W/m°C
• Average value of water vapor diffusion resistance factor µ > 15,000
• Average density of the coating: 30 kg/m3
• Free of ammonia residues
• Excellent resistance to external chemical agents
• Non-flammable class 1 (M.D. 26/06/84)
• Fire behavior: BLs1d0 (EN 13501-1)
• CFC- and HCFC-free (EEC/EU Reg. 037/2000)
• Pigmentation of the outer film Silver grey
• Enhanced UV resistance
• Halogen-free flame retardant
