Apirator - static extractor with heat recovery

TECHNICAL FEATURES:

• FOR WALL INSTALLATION
• wall thickness 3.5 cm
• available with flow rates from 30 to 80 m³/h
• WI-FI CONTROL MODES (OFF LINE) - COMFORT - CO2 (1)
• HUMIDITY THRESHOLD CAN BE SET TO 3 DIFFERENT VALUES: 40-50-60%
• HEAT EXCHANGER MADE OF HIGH-EFFICIENCY CERAMIC MATERIAL
• PLATE THICKNESS LESS THAN 5 cm
• HOLE ON WALL Ø 103-128-153 mm
• BUILT-IN G2 GRADE FILTERS
• ENERGY-EFFICIENT FAN
• SUITABLE FOR CONTINUOUS OPERATION
• EQUIPPED WITH REMOTE CONTROL
• COLORED LEDS ON THE DASHBOARD FOR DISPLAYING SETTINGS
• 3-SPEED OPERATION
• 230 Vac EXTERNAL/INPUT POWER SUPPLY.
• MINIMUM INSTALLATION THICKNESS: 310 mm (1)

WI-FI MODE (OFF LINE). All functions of the Pico Wi can also be controlled via wi-fi directly from your smartphone or tablet in a simple and intuitive way. Simply activate the wi-fi function from your device and select Pico Wi, to access the system.

COMFORT MODE The system, when set to WINTER COMFORT or SUMMER COMFORT mode, activates, taking advantage of the temperature difference between the outdoor and indoor environment in order to reach an ideal temperature in the indoor environment.

CO2 MODE Selecting the AUTO 5 and AUTO 6 modes provides the opportunity to renew the air in the indoor environment while maintaining a high level of healthiness at all times.

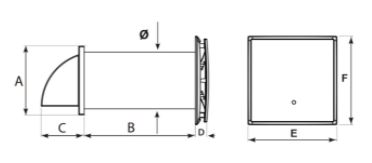

DIMENSIONS:

• 186mm (A) - 500mm (B) - 101MM (C) - DIAM 153mm - 35mm (D) - 240mm (E) - 240mm (F)
